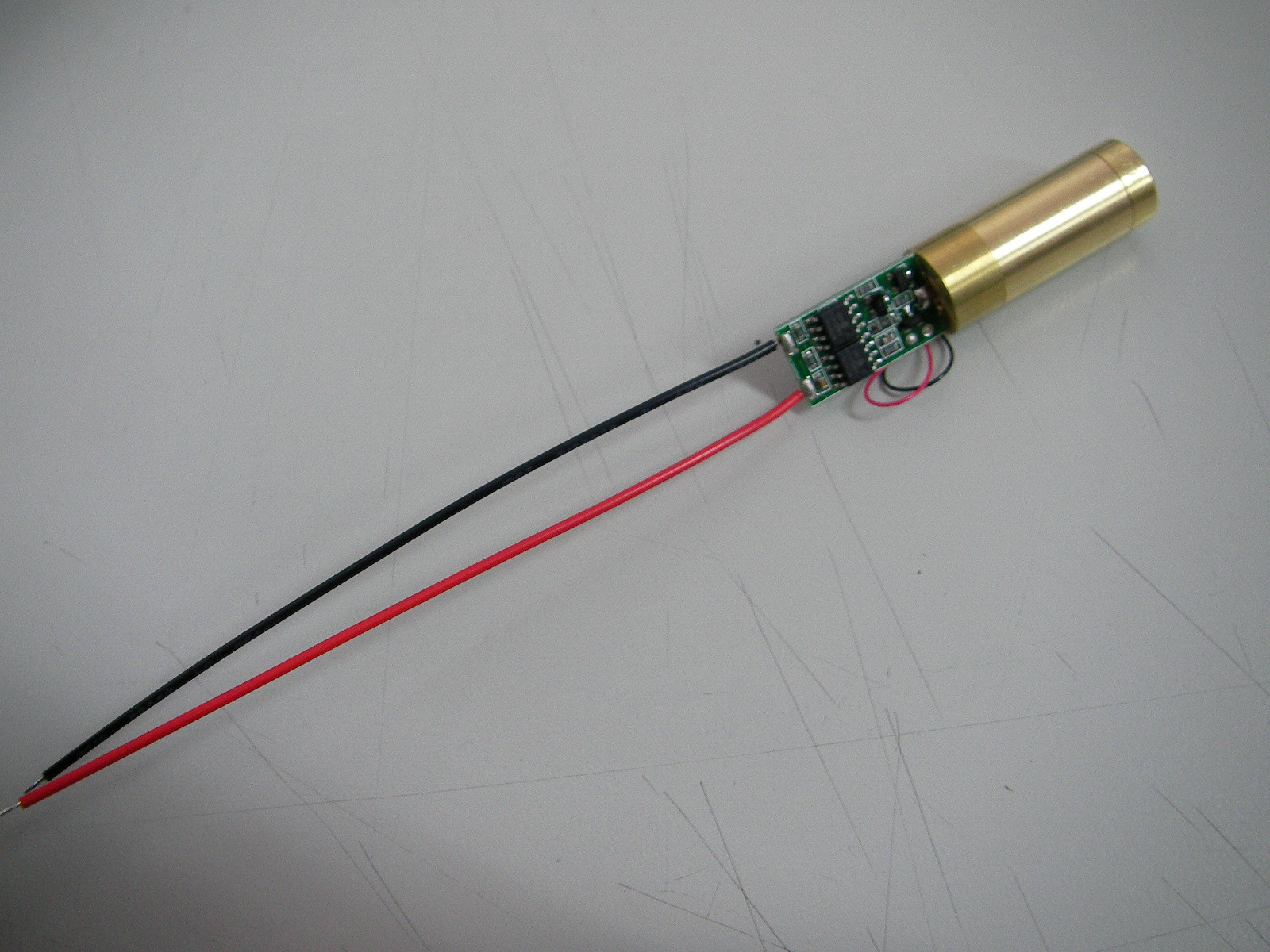

GMP532-J Series 532nm Green DPSS Laser Modules Designed for IEC 60825-1, EN 60825-1, JQA Compliances

GMP532-1F3-JPY-G

Overview

The Lasermate Group, Inc. GMP532-J series laser modules are 532nm green diode-pumped-solid-state laser modules with output power <1mW and 3V DC operating voltage. The class II laser modules meet Single Fault Failure requirements.

Features

532nm green DPSS laser module
Automatic Power Control (APC) circuit with limited current to protect module
Low operating current
Output power stability 5%
Compact size
Better beam quality with glass beam expander and glass collimator
Designed for IEC 60825-1, EN 60825-1, and JQA compliances

Specifications

Wavelength: 532nm
Operation Mode: TEM₀₀
Output Power: 0.5-0.99mW
Laser Class: Class II
Laser beam off center axial of brass housing: ≤+/-5 degree, ≤+/-3 degree, ≤+/-1.5 degree
Operating Current: <0.30A
Operating Voltage: 3V DC
Circuit Design: APC with limited current, CW operation mode, meets Single Fault Failure requirements for IEC 60825-1, EN 60825-1, and JQA compliances
M²: <2
Stability: <+/-5% at constant temperature
Linewidth: <0.1nm
Polarization: Linear
Lens: Glass beam expander, glass collimator, plastic focus lens
Beam Divergence: <1.2mrad
Beam Diameter: <2mm
Connector: Black (-); red wire & brass case (+)
Length of Wires: 10cm
Storage Temperature: 10 to 50^oC
Operating Temperature: 20 to 30^oC
Expected Lifetime: >3000 hours
Dimensions:
- Green laser head: Dia. 12mm x L. 35.3+/-0.5 mm
- Driver circuit board: W. 12mm x L. 20mm

Documentation

[PDF] GMP532-1F3-JPY-G 532nm Green DPSS Laser Modules for IEC 60825-1, EN 60825-1, JQA Compliance Specifications
