Laser Modules Designed for JQA (Japan Quality Assurance), EN 60825-1, IEC 60825-1 Compliances

Lasermate Group, Inc. offers class II laser modules that meet Single Fault Failure requirements. IEC (International Electro technical Commission) 60825-1 is applicable to safety of laser products emitting laser radiation in the wavelength range 180 nm to 1 mm. IEC 60825-1, EN 60825-1, and JQA require the laser products to meet Single Fault Failure requirements, which require the highest emitted power under reasonably foreseeable single fault failure conditions never higher than the laser classification. Therefore, for class II or class 2 laser products, the output power is <1mW, the highest emitted power under reasonably foreseeable single fault failure conditions for this laser shall never be >1mW.

The driver PCB for diode lasers is of importance; in the case of a flaw or defect, it may cause the laser product to emit above the AEL (accessible emission limit) of the desired Class. Our PS- series laser diode modules with the thought of safety would eliminate this risk and keep the laser in the safe range as required. PS-series class II laser diode modules are designed with the driver PCB to meet Single Fault Failure Requirements for IEC 60825-1, EN 60825-1, and JQA.

Note: The driver PCB can be used in our PL and LS series laser diode modules to meet Single Fault Failure Requirements for IEC 60825-1, EN 60825-1, and JQA if required.

Image	Model Series	Data Sheet	Description	Wavelength	Output Power	Laser Class	Operating Current	Operating Voltage	Dimensions
	GMP532-J		532nm Green Dot DPSS Laser Modules - Dia. 12mm x 55.3mm, IEC 60825-1, EN 60825-1 & JQA Compliance	532nm	0.5-0.99	II	<0.30A	3V DC	Dia. 12mm x L. 55.3mm

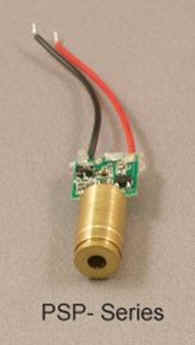

	PSP		650nm Red Dot Laser Diode Modules - Dia. 8mm x L. 25.7mm, IEC 60825-1, EN 60825-1, JQA	650nm	0.5-0.99mW	II	33mA for 635nm; 25mA for 650nm	3-9V DC	Dia. 8mm x L. 25.7mm

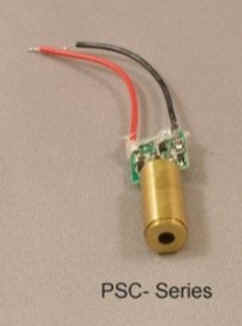

	PSC		650nm Red Dot Laser Diode Modules - Dia. 8mm x L. 29mm, IEC 60825-1, EN 60825-1, JQA	650nm	0.5-0.99mW	II	33mA for 635nm; 25mA for 650nm; 38mA for 670nm	3-9V DC	Dia. 8mm x L. 29mm

Laser Modules for IEC 60825-1, EN 60825-1 and JQA (Japan Quality Assurance) Compliance

532nm Green Dot DPSS Laser Modules - Dia. 12mm x 55.3mm, IEC 60825-1, EN 60825-1 & JQA Compliance

650nm Red Dot Laser Diode Modules - Dia. 8mm x L. 25.7mm, IEC 60825-1, EN 60825-1, JQA

650nm Red Dot Laser Diode Modules - Dia. 8mm x L. 29mm, IEC 60825-1, EN 60825-1, JQA
