1.25Gbps Duplex 1x9 Optical Transceivers
Lasermate Group, Inc.
is
proud to supply RoHS compliant 1.25Gbps duplex 1x9 optical transceivers for
Gigabit Ethernet/1X Fiber channel applications. The 1x9 transceivers is a
traditional transceiver type mainly used for industrial communications,
including fiber-optic transmission systems, media converters, optical mode

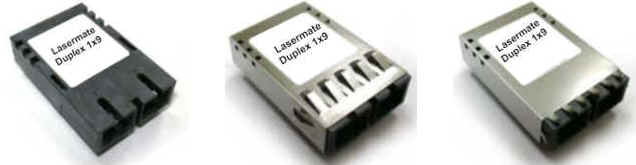

converters and other industrial Ethernet switches. The 1x9 transceiver module is
comprised of three basic elements: two optical subassemblies, an electrical
subassembly and the housing with integral duplex or simplex SC/ST/FC connector.
|
|
Model
Number
|
Data
Sheet |
Description |
Form
Factor |
Data
Rate |
Wavelength
|
Emitter |
Media |
Distance |
Protocol |
Connector
Type |
|
|
CM85V-24A-4S-xx-Tx |
 |
1.25Gbps 1000Base-SX 850nm Multimode
550m 1x9 Transceiver with Duplex ST Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
850nm |
VCSEL |
MMF |
550m
|
1000Base-SX |
ST |
|
|
CM85V-24A-4S-xC-Cx |
|
1.25Gbps 1000Base-SX 850nm Multimode
550m 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
850nm |
VCSEL |
MMF |
550m
|
1000Base-SX |
SC |
|
|
CS13F-24A-4S-xx-Tx |
|
1.25Gbps 1000Base-LX 1310nm Single Mode
10km 1x9 Transceiver with Duplex ST Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1310nm |
FP |
SMF |
10km
|
1000Base-LX |
ST |
|
|
CS13F-24A-4S-xC-Cx |
|
1.25Gbps 1000Base-LX 1310nm Single Mode
10km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1310nm |
FP |
SMF |
10km
|
1000Base-LX |
SC |
|
|
CS13D-24A-4L-xC-Cx |
|
1.25Gbps 1000Base-LHX 1310nm Single Mode
30km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1310nm |
DFB |
SMF |
30km
|
1000Base-LHX |
SC |
|
|
CS13D-24A-4U-xC-Cx |
|
1.25Gbps 1000Base-LHX+ 1310nm Single
Mode 50km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1310nm |
DFB |
SMF |
50km
|
1000Base-LHX+ |
SC |
|
|
CS15D-24A-4L-xC-Cx |
|
1.25Gbps 1000Base-XD 1550nm Single Mode
50km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1550nm |
DFB |
SMF |
50km
|
1000Base-XD |
SC |
|
|
CS15D-24A-4U-xC-Cx |
|
1.25Gbps 1000Base-ZX 1550nm Single Mode
70km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1550nm |
DFB |
SMF |
70km
|
1000Base-ZX |
SC |
|
|
CS13xxD-24A-4L-xC-Cx |
|
1.25Gbps CWDM 1270nm~1450nm Single Mode
20dB margin 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1270~1450nm |
CWDM |
SMF |
20dB margin
|
CWDM |
SC |
|
|
CS15xxD-24A-4L-xC-Cx |
|
1.25Gbps CWDM 1470nm~1610nm Single Mode
20dB margin 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1470~1610nm |
CWDM |
SMF |
20dB margin
|
CWDM |
SC |
|
|
CS13xxD-24A-4U-xC-Cx |
|
1.25Gbps CWDM 1270nm~1450nm Single Mode
24dB margin 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1270~1450nm |
CWDM |
SMF |
24dB margin
|
CWDM |
SC |
|
|
CS15xxD-24A-4U-xC-Cx |
|
1.25Gbps CWDM 1470nm~1610nm Single Mode
24dB margin 1x9 Transceiver with Duplex SC Connector, RoHS Compliant
|
1x9 |
1.25Gbps |
1470~1610nm |
CWDM |
SMF |
24dB margin
|
CWDM |
SC |
| |
|
