Photodiodes / InGaAs Photodiode Chips

InGaAs Photodiode Chips

Lasermate Group, Inc. offers InGaAs photodiode chips for mainly 1260nm~1620nm wavelength spectral range with data rate from 155Mbps to 10Gbps.


Model Number

Data Sheet

Description

Photodiode Material/Type

Wavelength

Data Rate

Size of Photodiode

Active Area

Dark Current

Responsivity

Junction Capacitance

Breakdown Voltage

PDC-13A2G

2.5Gbps 1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 75um

InGaAs PIN Photodiode

1260~1620nm

2.5Gbps

250x250x200um³

Ø 75um

0.1nA @ 5V

1.1A/W

0.75pF @ 1.5V, 0.70pF @ 5V

35V

PDC-13A10G

10Gbps 1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 50um

InGaAs PIN Photodiode

1260~1620nm

10Gbps

450x300x200um³

Ø 50um

0.2nA @ 5V

1.1A/W @ 1550nm, 0.9A/W at 1310nm

0.25pF @ 1.5V, 0.20pF at 5V

40V

PDC-13B10G

10Gbps 1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 50um

InGaAs PIN Photodiode

1260~1620nm

10Gbps

220x300x200um³

Ø 50um

0.2nA @ 5V

1.1A/W @ 1550nm, 0.9A/W at 1310nm

0.25pF @ 1.5V, 0.20pF at 5V

40V

PDC-13C10G

10Gbps 1310nm/1550nm InGaAs PIN Photodiode Chip (Die), Dia. 50um

InGaAs PIN Photodiode

1260~1620nm

10Gbps

220x350x150um³

Ø 50um

0.2nA @ 5V

1.1A/W @ 1550nm, 0.9A/W at 1310nm

0.27pF @ 1.5V, 0.22pF at 5V

40V

PDC-13D10G

10Gbps 1310nm/1550nm InGaAs PIN Photodiode Chip (Die), Dia. 50um

InGaAs PIN Photodiode

1260~1620nm

10Gbps

270x270x150um³

Ø 50um

0.2nA @ 5V

1.1A/W @ 1550nm, 0.9A/W at 1310nm

0.27pF @ 1.5V, 0.22pF at 5V

40V

PDC-13A300

1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 300um

InGaAs PIN Photodiode

1260~1620nm

500x500x200um³

Ø 300um

0.3nA @ 5V

1.0A/W @ 1300nm, 1.1A/W @ 1550nm

6pF @ 5V

35V

PDC-13A1000

1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 1.0mm

InGaAs PIN Photodiode

1260~1620nm

1380x1380x200um³

Ø 1.0mm

2nA @ 5V

0.95A/W @ 1310nm

100pF @ 0V

35V

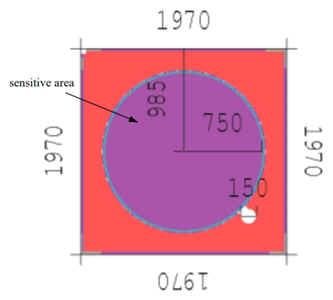

PDC-13A1500

1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 1.5mm

InGaAs PIN Photodiode

1260~1620nm

1.97mmx1.97mm

Ø 1.5mm

0.9A/W @ 1300nm

250pF @ 0V

18V (min)

PDC-13A3000

1260nm~1620nm InGaAs PIN Photodiode Chip (Die), Dia. 3.0mm

InGaAs PIN Photodiode

1260~1620nm

3.47x3.47x0.2mm³

Ø 3.0mm

5nA @ 5V

0.9A/W @ 1310nm, 1.0A/W @ 1550nm

1000pF @ 0V

25V
