PLP-T Series TTL Modulated 635nm-980nm Miniature Laser Diode Modules

Overview

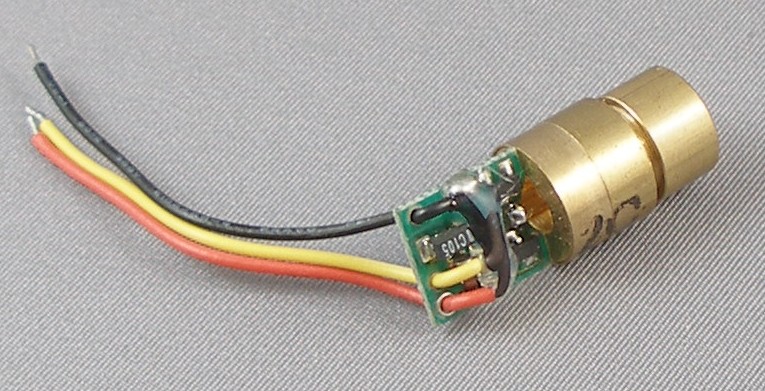

The Lasermate Group, Inc. PLP-T series TTL modulated laser diode module is available in a wide range of wavelengths in the red and infrared spectral range from 635nm to 980nm and different output power levels with a circular output beam. The PLP635-980-T series laser module is a self-contained laser diode system designed for OEM applications with adjustable focusing, APC circuit design features, and TTL modulation from DC to 100kHz. Additional heat sink may be needed for the laser module under continuously operating for a long period of time. Designed for OEM, the laser is ideal for a wide range of low power laser applications, such as leveling, measurement, alignment and positioning.

Features

Wide range of wavelengths from 635nm to 980nm (including 650nm, 670nm, 780nm, 808nm, 850nm, 904nm)
Different output power levels for all wavelengths
Adjustable focus
Elliptical beam profile
Singlet plastic collimating lens
Automatic Power Control (APC) circuit design
TTL modulation up to 100kHz

Specifications

Wavelength: 635-980nm
Diode Output Power: 5-10mW
Laser Class: Class II, IIIa, IIIb
Operating Current: 25-40mA typical
Operating Voltage: 5V DC (red wire "+" & black wire "-")
Control Voltage: Maximum 5V DC (yellow wire "+" & black wire "-")
Driver Circuit: APC with modulator
Bandwidth: Up to 100kHz
Optics: Singlet plastic collimating lens
Beam Divergence: <0.5 mrad
Beam Size at 5m: ~4x7 mm
Beam Profile: Elliptical
Focus: Adjustable
Operating Temperature: -10 to 40^oC or -10 to 50^oC
Connector: Black wire -, red and yellow wires +
Dimensions:
- Brass case: Dia. 10.5mm x L. 15mm
- PCB: W. 10mm x L. 11mm

Documentation

[PDF] PLP-T Series Modulated 635nm, 650nm, 670nm Class II, IIIa Red Laser Diode Modules, Focus Adjustable, Elliptical Beam, TTL up to 100kHz

[PDF] PLP-T Series Modulated 780nm, 808nm, 850nm, 904nm, 980nm Class IIIb Infrared Laser Diode Modules, Focus Adjustable, Elliptical Beam, TTL up to 100kHz
