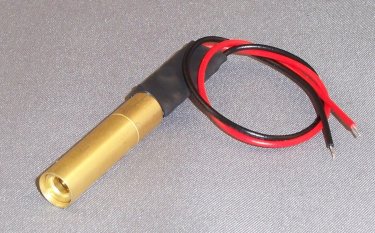

GMY532 Series 532nm Green DPSS Laser Modules

GMY532-XF3-PP

Overview

The Lasermate Group, Inc. GMY532 series laser modules are 532nm green diode-pumped-solid-state laser modules available in different output power levels and with 3V DC operating voltage. They also feature Automatic Power Control (APC) circuit design with pulse function.

Features

532nm green DPSS laser module
Different output power levels
Automatic Power Control (APC) circuit with pulse function
Fixed focus
Low operating current
Output power stability 10%
Smallest size: Dia. 8mm

Specifications

Wavelength: 532nm
Mode: TEM₀₀
Output Power: 0.4-4.99mW
Laser Class: Class II, IIIa
Operating Current: 140mA
Operating Voltage: 3V DC
Driver Circuit: APC with pulse function, ~120Hz 50% duty cycle
Stability: <+/-10%
M²: <2
Linewidth: <0.1nm
Polarization: Linear
Beam Divergence: <1.2mrad
Beam Diameter: <2mm
Connector: Black wire (-) & red wire and brass case (+)
Storage Temperature: 10 to 50^oC
Optimum Operating Temperature: 20 to 28^oC
MTTF: >3000 hours
Dimensions:
- Laser head: Dia. 8mm x L. 30.5+/-0.5mm
- Driver circuit board: W. 9mm x L. 20.2mm

Documentation

[PDF] GMY532-1F3-PP 532nm Class II <1mW Green DPSS Laser Module Specifications

[PDF] GMY532-5F3-PP 532nm Class IIIa <5mW Green DPSS Laser Module Specifications
