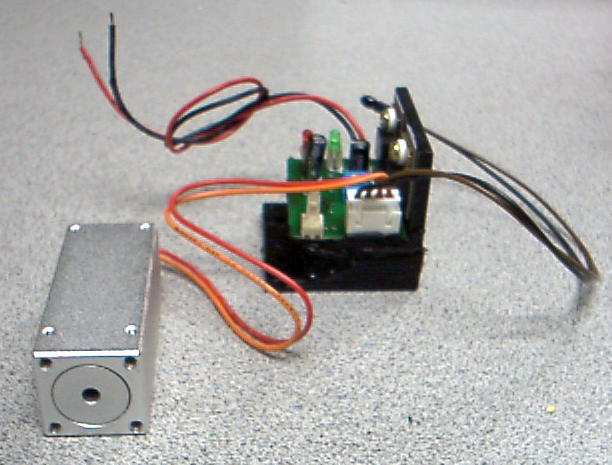

GMR1064 Series 1064nm Infrared DPSS Laser Modules

GMR1064-XFYCZ

Overview

The Lasermate Group, Inc. GMR1064 series laser modules are 1064nm infrared diode-pumped-solid-state laser modules with different available output power levels and 9-15V DC operating voltage. The laser modules feature Automatic Power Control (APC) or Automatic Current Control (ACC) circuit design and rectangular package with mounting screw holes.

Features

1064nm infrared DPSS laser module
Automatic Power Control (APC) or Automatic Current Control (ACC) circuit design
Fixed focus
Low cost
Rectangular package
With mounting screw holes
Output power stability 5%
Compact size

Specifications

Wavelength: 1064nm
Mode: TEM₀₀
Output Power: 3-5mW, >10mW, >20mW, >50mW, >100mW
Laser Class: Class IIIb
Operating Current: <0.4A for up to >50mW, <0.6A for >100mW
Operating Voltage: 9-15V DC
Focus: Fixed
Driver Circuit: APC for up to >10mW, ACC for >20mW
Operation mode: CW with TTL capable and up to 1kHz
M²: <2
Linewidth: <0.1nm
Linear Polarization Ratio: Standard 4:1 (Optional 100:1)
Beam Divergence: <1.4mrad
Beam Diameter at Aperture: <1mm
Stability: <+/-5%
Overheat Protection: Optional for PCB with heat sink
9V AC Adapter: Included for PCB in box
Connector:
- For PCB with heat sink: Black (-) & red (+) wires for CW & Jumpt for TTL
- For PCB in box: DC-Jack for CW & BNC for TTL
Storage Temperature: 10 to 50^oC
Optimum Operating Temperature: 22 to 28^oC
MTTF: 5000 hours
Dimensions:
- Laser head: 50mm x 21mm x 21mm
- PCB driver including heat sink: W. 40mm x L. 37.5mm x H. 38mm
- PCB driver in box: W. 60mm x L. 80mm x H. 45.5mm

Documentation

[PDF] GMR1064-XFYCZ 1064nm Infrared DPSS Laser Modules Specifications
