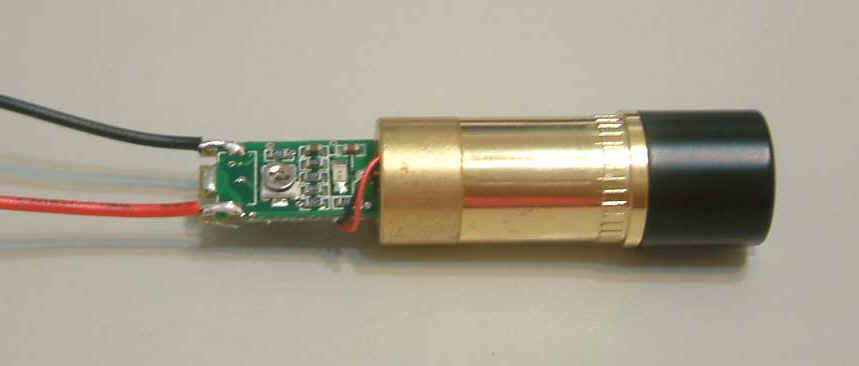

GMP532-A Series 532nm Green DPSS Laser Modules (Adjustable Focus)

GMP532-XA3-CP

Overview

The Lasermate Group, Inc. GMP532-A series laser modules are 532nm green diode-pumped-solid-state laser modules available in different output power levels and focus adjustable.

Features

532nm green DPSS laser module
Different output power levels
Automatic Power Control (APC) circuit with limited current to protect module
Low operating current
Output power stability 5%
Compact size

Specifications

Wavelength: 532nm
Operation Mode: TEM₀₀
Output Power: 0.5-20mW
Laser Class: Class II, IIIa, IIIb
Operating Current: <0.30A
Operating Voltage: 3V DC
Circuit Design: APC with limited current
Operation Mode: CW
Focus: Adjustable
Stability*: <+/-5% at constant temperature
Beam Divergence: <1.2mrad
Connector: Black (-); red wire & brass case (+)
Storage Temperature: 10 to 50^oC
Operating Temperature: 20 to 30^oC
Dimensions:
- Green laser head: Dia. 13mm x L. 36+/-0.5 mm
- Driver circuit board: W. 9mm x L. 16mm

Documentation

[PDF] GMP532-XA3-CP 532nm Green DPSS Laser Modules Specifications
