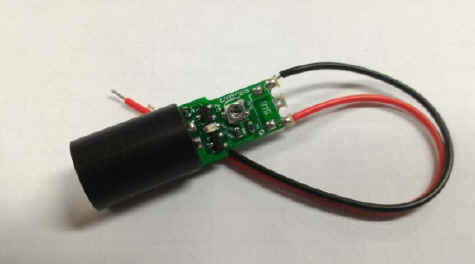

GMP515 Series 515nm Green Dot Laser Diode Modules

GMP515-XF5

Overview

The Lasermate Group, Inc. GMP515 series is 515nm green laser diode module with Automatic Power Control (APC) circuit design and compact dimensions of 12mm diameter.

Features

• 515nm green laser diode module

• Automatic Power Control (APC) circuit design

• Compact size

• Power output stability 5%

Specifications

• Wavelength: 515nm+/-10nm
• Output Power (mW) @ 25^oC: 0.5-0.99mW, 3-4.99mW
• Laser Class: Class II, IIIa
• Operating Current: <300mA
• Operating Voltage: 3-5V DC
• Circuit Design: APC (Automatic Power Control)
• Operation Mode: CW
• Operating Temperature: -10 to 50^oC
• Dimensions: Dia. 12mm x L. 17.5 +/- 0.5mm (Anodized aluminum housing) + W. 11 x L. 18mm (driver circuit board)
