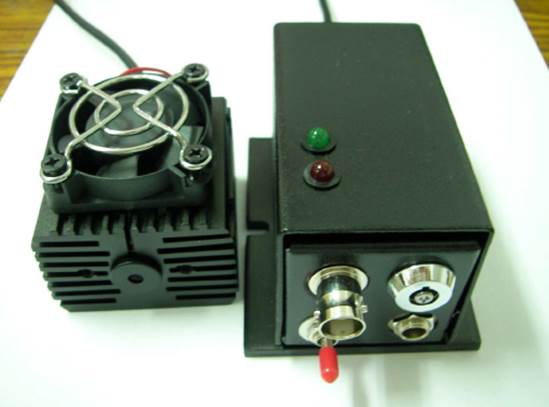

GMF1064 Series 1064nm Infrared DPSS Laser Modules

GMF1064-200FBCZ

Overview

The Lasermate Group, Inc. GMF1064 series laser modules are 1064nm infrared diode-pumped-solid-state laser modules at <200mW output power. The laser modules feature Automatic Current Control (ACC) circuit design and PCB driver in box with switch.

Features

1064nm infrared DPSS laser module
Automatic Current Control (ACC) circuit design
Fixed focus
Low cost
Output power stability 5%

Specifications

Wavelength: 1064nm
Mode: TEM₀₀
Output Power: <200mW (~180mW)
Laser Class: Class IIIb
Operating Current: <0.75A
PCB Driver: PCB driver in box with switch
Focus: Fixed
Driver Circuit: ACC
Operation mode: CW with TTL capable and up to 1kHz
M²: <2
Linewidth: <0.1nm
Linear Polarization Ratio: Standard 4:1 (Optional 100:1)
Beam Divergence: <1.4mrad
Beam Diameter at Aperture: <2mm
Output Power Stability for 1 hour: <+/-5%
Cooling Fan: Yes, automatic cooling fan included
9V AC Adapter: Included
Connector: DC-Jack for CW & BNC for TTL
Storage Temperature: 10 to 40^oC
Optimum Operating Temperature: 15 to 35^oC
MTTF: >3000 hours

Documentation

[PDF] GMF1064-200FBCZ 1064nm 180mW Infrared DPSS Laser Modules
