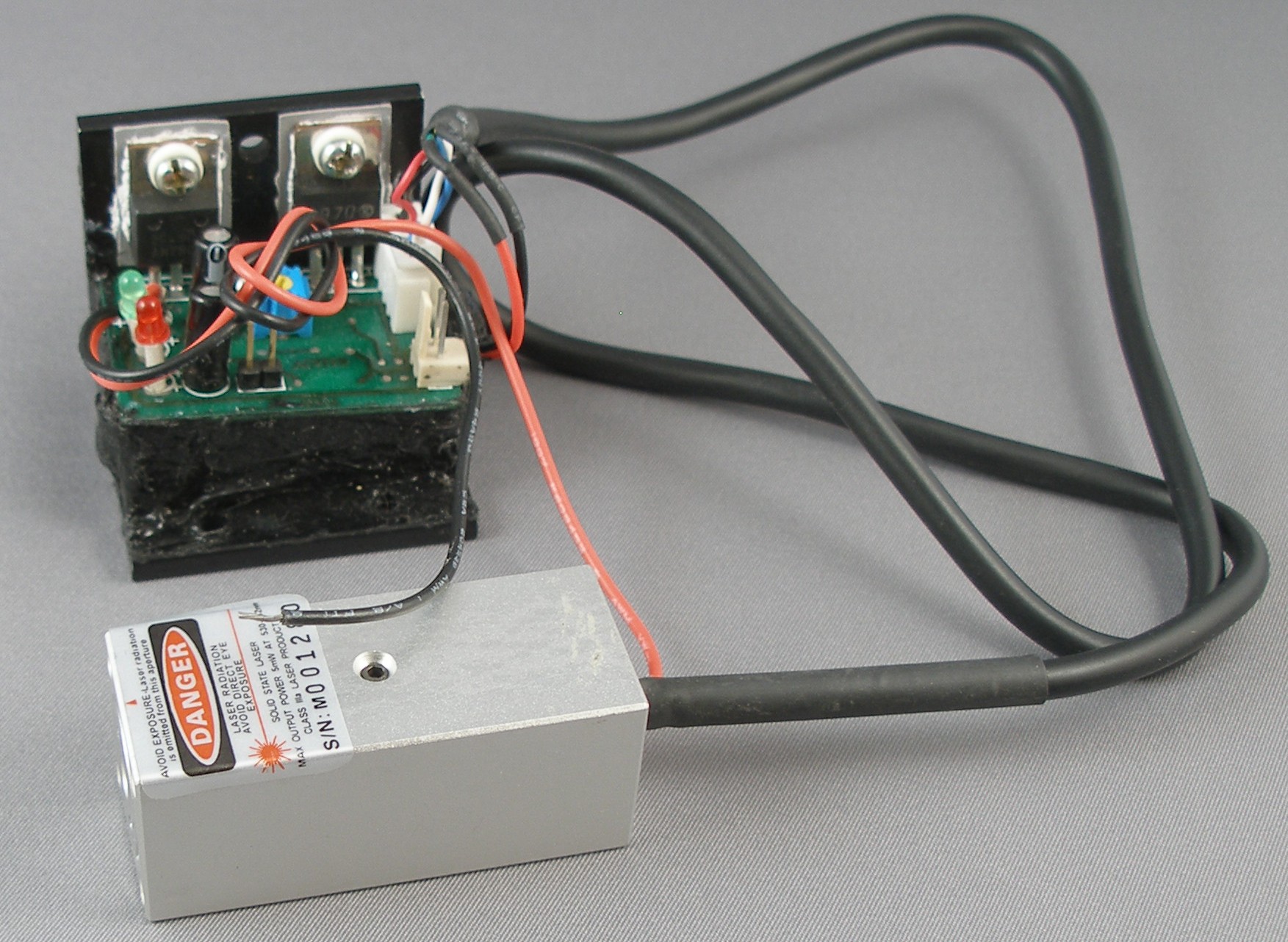

GME532 Series 532nm Green DPSS Laser Modules

GME532-XFYP1

Overview

The Lasermate Group, Inc. GME532 series laser modules are 532nm green diode-pumped-solid-state laser modules in rectangular package available in different output power levels. They also feature Automatic Power Control (APC) circuit design, focus fixed and with mounting holes.

Features

532nm green DPSS laser module
Different output power levels
Automatic Power Control (APC) circuit with limited current
Fixed focus
Low cost
Rectangular package
With mounting screw holes
Output power stability 5%
Compact size

Specifications

Wavelength: 532nm
Mode: TEM₀₀
Output Power: 0.5-20mW
Laser Class: Class II, IIIa, IIIb
Operating Current: <0.30A
Operating Voltage: 9-15V DC
Focus: Fixed
Driver Circuit: APC
Operation mode: CW
Linewidth: <0.1nm
Linear Polarization Ratio: Standard ≥4:1
Beam Divergence: <1.2mrad
Beam Diameter at Aperture: <1.5mm
Output Power Stability for 1 hour: <+/-5% (typical 1%) at constant temperature
Connector: Black (-) & red (+) wires
Storage Temperature: -10 to 50^oC
Optimum Operating Temperature: 20 to 30^oC
Option: TTL modulation up to 1kHz
MTTF: >3000 hours
Dimensions:
- Laser head: Dia. 20mm x L. 60mm
- PCB driver including heat sink: W. 40mm x L. 37.5mm x H. 38mm
- PCB driver in box: W. 60mm x L. 80mm x H. 45.5mm

Documentation

[PDF] GME532-XFYP1 532nm Green DPSS Laser Modules
