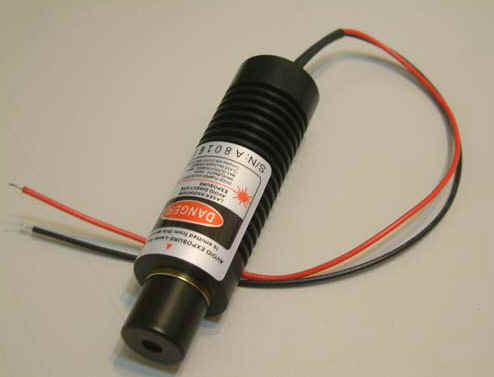

GMD532-A Series 532nm Green DPSS Laser Modules (Adjustable Focus)

GMD532-XA3P1 | GMD532-XA5P1

Overview

The Lasermate Group, Inc. GMD532-A series laser modules are 532nm green diode-pumped-solid-state laser modules in cylinder package available in different output power levels, 3V DC or 5V DC operating voltage and focus adjustable. The modules also feature adjustable focus, Automatic Power Control (APC) circuit design, and without mounting holes.

Features

532nm green DPSS laser module
Different output power levels
Automatic Power Control (APC) circuit with limited current
Adjustable focus
Low cost
Cylinder package
Without mounting hole
Output power stability 5%
Compact size

Specifications

Wavelength: 532nm
Mode: TEM₀₀
Output Power: 0.5-20mW
Laser Class: Class II, IIIa, IIIb
Operating Current: <0.30A
Operating Voltage: 3V DC or 5V DC
Focus: Adjustable
Driver Circuit: APC
Operation mode: CW
Linewidth: <0.1nm
Linear Polarization Ratio: ≥4:1
Beam Divergence: <1.2mrad
Beam Diameter at Aperture: <1.5mm
Output Power Stability for 1 hour: <+/-5% (typical 1%) at constant temperature
Connector: Black (-) & red (+) wires
Storage Temperature: -10 to 50^oC
Optimum Operating Temperature: 20 to 30^oC
MTTF: >3000 hours
Dimensions: Dia. 20mm x L. 70.5mm

Documentation

[PDF] GMD532-XA3P1 532nm Green DPSS Laser Modules, Focus Adjustable, 3V DC Operating Voltage

[PDF] GMD532-XA5P1 532nm Green DPSS Laser Modules, Focus Adjustable, 5V DC Operating Voltage
