GMC532 Series 532nm Green DPSS Laser Modules

Overview

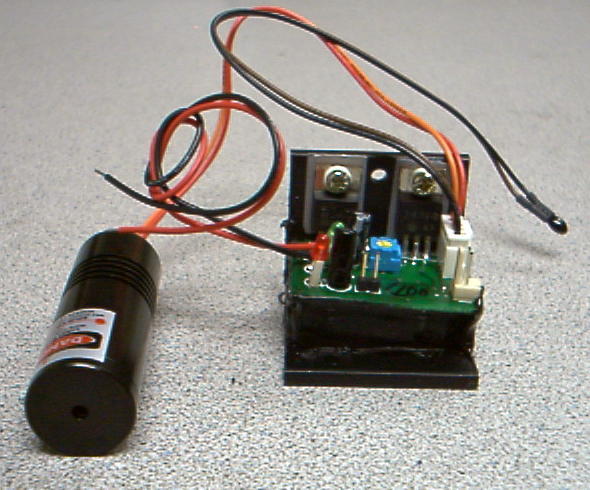

The Lasermate Group, Inc. GMC532 series laser modules are 532nm green diode-pumped-solid-state laser modules in cylinder package available in different output power levels, and with Automatic Power Control (APC) circuit design and fixed focus. They are also available with either PCB driver that includes heat sink or PCB driver in box with AC adapter included.

Features

532nm green DPSS laser module
Different output power levels
Automatic Power Control (APC) circuit with limited current
Fixed focus
Low cost
Cylinder package
TTL modulation available
Output power stability 5%
Compact size

Specifications

Wavelength: 532nm
Mode: TEM₀₀
Output Power: 0.5-20mW
Laser Class: Class II, IIIa, IIIb
Operating Current: <0.30A
Operating Voltage: 9-15V DC
Focus: Fixed
Driver Circuit: APC
Operation mode: CW with TTL capable and up to 1kHz
Linewidth: <0.1nm
Linear Polarization: Standard ≥4:1
Beam Divergence: <1.2mrad
Beam Diameter: <1.5mm at aperture
Stability: <+/-5% at constant temperature
Overheat Protection: Optional for PCB driver including heat sink
AC Adapter: Included for PCB driver in box
Connector:
- For PCB driver including heat sink: Black (-) & red (+) wires for CW & Jump for TTL
- For PCB driver in box: DC-Jack for CW & BNC for TTL
Storage Temperature: 10 to 50^oC
Optimum Operating Temperature: 22 t0 28^oC
MTTF: >3000 hours
Dimensions:
- Green laser head: Dia. 20mm x L. 58.5mm
- PCB driver including heat sink: W. 40mm x L. 47.5mm x H. 38mm
- PCB driver in box: W. 60mm x L. 80mm x H. 45.5mm

Documentation

[PDF] GMC532 Series 532nm Green DPSS Laser Modules Specifications
