Transceivers / Duplex 1x9 Optical Transceivers / 622Mbps Duplex 1x9 Optical Transceivers

622Mbps Duplex 1x9 Optical Transceivers

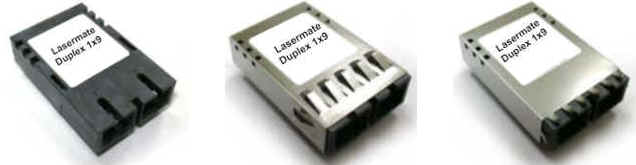

Lasermate Group, Inc. is proud to supply 622Mbps RoHS compliant duplex 1x9 optical transceivers for OC12/STM4 applications. The 1x9 transceivers is a traditional transceiver type mainly used for industrial communications, including fiber-optic transmission systems, media converters, optical mode converters and other industrial Ethernet switches. The 1x9 transceiver module is comprised of three basic elements: two optical subassemblies, an electrical subassembly and the housing with integral duplex or simplex SC/ST/FC connector.

Image	Model Number	Data Sheet	Description	Form Factor	Data Rate	Wavelength	Emitter	Media	Distance	Protocol	Connector Type
	CS13F-12A-3S-xC-Cx		622Mbps S4.1 1310nm 20km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant	1x9	622Mbps	1310nm	FP	SMF	20km	S4.1	SC
	CS13D-12A-3L-Px-Cx		622Mbps L4.1 1310nm 50km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant	1x9	622Mbps	1310nm	DFB	SMF	50km	L4.1	SC
	CS15D-12A-3U-Px-Cx		622Mbps L4.2 1310nm 80km 1x9 Transceiver with Duplex SC Connector, RoHS Compliant	1x9	622Mbps	1550nm	DFB	SMF	80km	L4.2	SC
