VCSEL Chips

Lasermate Group, Inc. offers Vertical Cavity Surface Emitting Laser chip/die components for data communication and sensing applications. Given that individual VCSEL emitters are limited in size and output power, we also supply VCSEL arrays, whereby the VCSEL chips are densely packed into arrays to collectively generate a much higher output power level.

VCSEL Chips for Data Communication

Image	Part Number	Data Sheet	Description	Wavelength	Data Rate	Mode	Number of Channels
	VCC-85A2G		1.25/2.5G 850nm VCSEL Chip (Die)	850nm	1.25/2.5Gbps	Multi	1
	VCC-85A4G		4.25G 850nm VCSEL Chip (Die)	850nm	4.25Gbps		1
	VCC-85A6G		6G 850nm VCSEL Chip (Die)	850nm	6Gbps	Multi	1
	VCC-85A10G		10G 850nm 2.3mW VCSEL Chip (Die)	850nm	10Gbps		1
	VCC-85B10G		10G 850nm 2.2mW VCSEL Chip (Die)	850nm	10Gbps		1
	VCC-85C10G		10G 850nm 2.5mW Single Mode VCSEL Chip (Die)	850nm	10Gbps	Single	1
	VCCA4-85C10G		10G 850nm 2.5mW Single Mode VCSEL Chip (Die) 1x4 Array	850nm	10Gbps	Single	4
	VCCA8-85C10G		10G 850nm 2.5mW Single Mode VCSEL Chip (Die) 1x8 Array	850nm	10Gbps	Single	8
	VCCA12-85C10G		10G 850nm 2.5mW Single Mode VCSEL Chip (Die) 1x12 Array	850nm	10Gbps	Single	12
	VCCA16-85C10G		10G 850nm 2.5mW Single Mode VCSEL Chip (Die) 1x16 Array	850nm	10Gbps	Single	16
	VCC-85A14G		14G 850nm VCSEL Chip (Die)	850nm	14Gbps	Multi	1

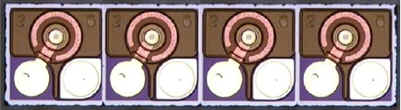

	VCCA4-85A14G		14G 850nm VCSEL Chip (Die) 1x4 Array	850nm	14Gbps	Multi	4
	VCC-85A25G		25G 850nm VCSEL Chip (Die)	850nm	25Gbps		1
	VCC-98A2G		1.25/2.5G 980nm 1.5mW VCSEL Chip (Die)	980nm	1.25/2.5Gbps	Multi	1

VCSEL Chips for Sensing

Image	Part Number	Data Sheet	Description	Wavelength	Output Power	Mode	Number of Emitters
	VCC-81A150H		810nm 150mW VCSEL Chip (Die)	810nm	150mW	Multi	82
	VCC-81A300H		810nm 300mW VCSEL Chip (Die)	810nm	300mW	Multi	127
	VCC-85A1G-OSL		850nm Single mode VCSEL Chip (Die)	850nm	0.5mW	Single	1
	VCC-85A4H		850nm 4mW VCSEL Chip (Die)	850nm	4mW		1
	VCC-85A8H		850nm 8mW Single Longitudinal Mode VCSEL Chip (Die)	850nm	8mW	Single	1
	VCC-85A120H		850nm 120mW VCSEL Chip (Die)	850nm	120mW	Multi	21
	VCC-85A380H		850nm 380mW VCSEL Chip (Die)	850nm	380mW		82
	VCC-85A500H		850nm 500mW VCSEL Chip (Die)	850nm	500mW	Multi	95
	VCC-85A630H		850nm 630mW VCSEL Chip (Die)	850nm	630nm		125
	VCC-85A1WH		850nm 1W VCSEL Chip (Die)	850nm	1000mW	Multi	202
	VCC-85A2WH		850nm 2W VCSEL Chip (Die)	850nm	2000mW	Multi	648
	VCC-85A3WH		850nm 3W VCSEL Chip (Die)	850nm	3000mW	Multi	600
	VCC-85A4WH		850nm 4W VCSEL Chip (Die)	850nm	4000mW	Multi	977
	VCC-94A5H		940nm 4.7mW VCSEL Chip (Die)	940nm	4.7mW	Multi	1
	VCC-94A6H		940nm 6mW Multi-Mode VCSEL Chip (Die)	940nm	6mW	Multi	1
	VCC-94A8H		940nm 8mW Single Longitudinal Mode VCSEL Chip (Die)	940nm	8mW	Single	1
	VCC-94A22H		940nm 22mW VCSEL Chip (Die)	940nm	22mW		5
	VCC-94A170H		940nm 170mW VCSEL Chip (Die)	940nm	170mW	Multi	30
	VCC-94A500H		940nm 500mW VCSEL Chip (Die)	940nm	500mW	Multi	95
	VCC-94A1WH		940nm 1W VCSEL Chip (Die)	940nm	1000mW	Multi	202
	VCC-94A2WH		940nm 2W VCSEL Chip (Die)	940nm	2000mW	Multi	648
	VCC-94A3WH		940nm 3W VCSEL Chip (Die)	940nm	3000mW	Multi	600
	VCC-94A4WH		940nm 4W VCSEL Chip (Die)	940nm	4000mW	Multi	977
