Lasers / Laser Modules / Precision Laser Modules

Precision Laser Modules

Lasermate Group, Inc. proudly provides precision laser modules, by which the beam axis and housing axial of laser module are pre-aligned with one another. The precision lasers are suitable for OEM assembly and alignment and aiming applications.







Image Model Series Data Sheet Description Wavelength Output Power Laser Class Operating Current Operating Voltage Dimensions

PLA515

Pre-aligned 515nm <5mW Class IIIa Green Dot Laser Diode Modules with <+/-0.05 degree Beam centering

515nm <5mW IIIa 180mA 3-5V DC Dia. 10.5mm x L. 33.5mm

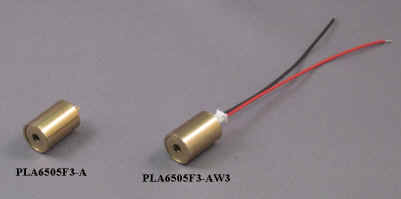

PLA650

Pre-aligned 650nm <5mW Class IIIa Red Dot Laser Diode Modules with <+/-0.05 degree Beam centering for Alignment application

650nm 4.5mW IIIa 30mA 3V DC Dia. 10.5mm x L. 15.5mm

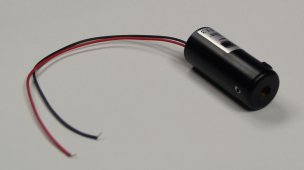

LAC

Precision Pointing 635nm-980nm Dot Laser Diode Modules

635-980nm 0.5-4mW II, IIIa, IIIb 25-50mA 3-6V DC Dia. 15.9mm x L. 47mm
