Lasers / Laser Modules / Cross Hair Laser Modules

Cross Hair Laser Modules

Lasermate Group, Inc. specializes in design and manufacturing high quality and low cost laser diode modules for OEM users. We have available visible red and infrared laser modules with cross-hair beam profiles in variety of packages and configurations offering at very competitive prices. Our laser modules with cross hair profile are fully self-contained with laser diode, optics, and power supply, and specially designed for OEM applications with fine cross hair profile, adjustable output power and beam focusing requirements. It is designed as the high quality and performance laser diode module for industrial heavy-duty users. Designed for the OEM, our laser modules are ideal for a wide range of low power laser applications, especially in continuous long-time usage such as alignment and positioning.

Image Model Number Data Sheet Description Wavelength Output Power Laser Class Operating Current Operating Voltage Dimensions
PLP-X9

635nm-980nm Cross Hair Generating Laser Diode Modules - Dia. 10.5mm x L. 16mm

635-980nm 0.5-6mW II, IIIa, IIIb 25-50mA 3-6V DC Dia. 10.5mm x L. 16mm
PLC-X9

635nm-980nm Cross Hair Generating Laser Diode Modules - Dia. 10.5mm x L. 20.3mm

635-980nm 0.5-4mW II, IIIa, IIIb 25-50mA 3-6V DC Dia. 10.5mm x L. 20.3mm

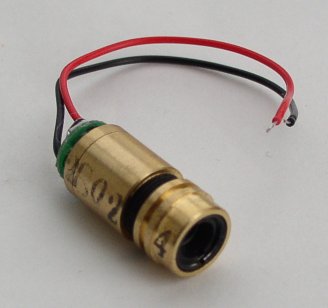

PLG-X9

635nm-980nm Cross Hair Generating Laser Diode Modules - Dia. 10.5mm x L. 21.5mm

635-980nm 0.5-7mW II, IIIa, IIIb 25-50mA 3-6V DC Dia. 10.5mm x L. 21.5mm
LTG-X9

635nm-980nm Cross Hair Generating Laser Diode Modules - Dia. 0.5in x L. 2in

635-980nm 0.5-45mW II, IIIa, IIIb 30-90mA 4.5-6V DC or 4.5-9V DC Dia. 0.5in x L. 2in
LXG-X9

635nm-980nm Cross Hair Generating Laser Diode Modules - Dia. 0.5in x L. 2in, DC-Jack Connector

635-980nm 0.5-25mW II, IIIa, IIIb 30-90mA 4.5-6V DC or 4.5-9V DC Dia. 0.5in x L. 2in
