Model No.

RSLF-639-XFHY

Wavelength (nm)

671+/-1

Output power (mW)

>50  (X=50),  >100  (X=100),

>200  (X=200), >300  (X=300), >400  (X=400)

Transverse mode

TEM₀₀

Longitude mode

Single

Power stability (rms, over 4 hours)

<1% (Y=D) except X=400, <3% (Y=E), <5% (Y=A)

Noise of amplitude (rms, 1-20MHz)

<0.5%

Warm-up time (minutes)

<10

Operating mode

CW mode

M² factor

<1.2

Beam divergence, full angle (mrad)

<1.5

Beam diameter at the aperture (mm)

<1.5

Beam height from base (mm)

27.4

Coherent length (m)

>10

Spectral linewidth (nm)

<0.0003

Polarization ratio

>100:1, Horizontal±5 degree

Point stability after warm-up (mrad)

<0.05

Operating temperature (^oC)

10-35

Expected lifetime (hours)

10,000

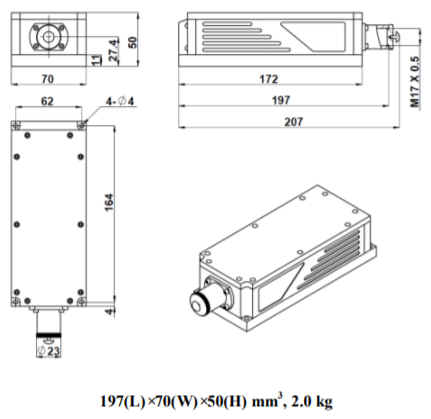

Laser head dimensions (mm³)

197(L)×70(W) ×50(H)

Laser head weight (kg)

2.0

Power supply

High Power Elite Power supply with complete FDA compliant features, such as the turnkey switch and interlock, and easy to operate; CW mode without modulation.

Power supply input voltage

90-240VAC

Power supply dimensions (mm³)

236 (L) ×145(W) ×104 (H)

Power supply weight (kg)

2.3kg

Warranty

10 months
