RMLF
Series >1,000mW
High Power 639nm
Diode
Pumped Solid State Lasers
In
addition, the fiber coupled RMLF-series 639nm lasers with FC or SMA905
connector are also available. If interested, please send
the request to e-mail address paul@lasermate.com
for more detailed information.
|
|
Model No.
|
RMLF-639-XFYDZQ
|
RMLF-639-XFYEZQ
|
RMLF-639-XFYAZQ |
|
Wavelength
(nm)
|
639+/-1
|
|
Output
power (mW)
|
>100 (X=100),
>200 (X=200),
>300 (X=300),
>500 (X=500),
>800 (X=800),
>1,000 (X=1W)
|
|
Transverse
mode
|
TEM00
|
|
Operating
mode
|
CW
|
|
Power
stability (rms, over 4 hours)
at the Maximum output power
|
<1%
|
<3%
|
<5%
|
|
Noise of
amplitude (rms, 1~20MHz)
|
<1% (Z=1) low noise*; >1% (Z=2)
|
|
Warm-up
time (minutes)
|
<10
|
|
M2
factor
|
<1.2
|
|
Beam
divergence, full angle (mrad)
|
<1.5
|
|
Beam
diameter at the aperture (mm)
|
~2.0
|
|
Beam
height from base (mm)
|
27.4
|
|
Polarization ratio
|
>100:1, Horizontal ±5 degree
|
|
Pointing stability after
warm-up (mrad)
|
<0.05
|
|
Operating
temperature (oC)
|
10-35
|
|
Expected
lifetime (hours)
|
10,000
|
|
Dimensions
of laser head (mm3)
|
197(L)×70(W) ×50(H)
|
|
Net
weight of laser head (kg)
|
2.0
|
|
Power Supply
|
High
Power Elite Power Supply (Y=H): with
complete FDA compliant features, such as the turnkey switch and interlock,
and easy to operate; CW mode with optional TTL modulation up to 10kHz
High
Power Laboratory Power Supply (Y=M): with complete FDA
compliant features, such as the turnkey switch and interlock, and
more functions; CW mode with the
adjustable output power knob, the operating current LED display, and
optional TTL/Analog modulations up to 10kHz
|
|
Optional Modulation
|
No (Q=0),
1Hz -1kHz TTL (Q=1), 1kHz -10kHz TTL
(Q=2)
1Hz -1kHz
analog (Q=3), 1kHz -10kHz analog (Q=4)
|
|
Power
Supply
Voltage
|
90-240 V AC
|
|
Dimensions
of power supply (mm3)
|
238 (L) ×146(W)
×102 (H) for Y=H; 268
(L) ×145(W)
×106 (H) for
Y=M
|
|
Weight
of power supply
(kg)
|
2.3 for
Y=H; 2.6 for Y=M
|
|
Warranty
time
|
10 months
|
|
Remark
|
The stability of output power is promised at the maximum output power
only. The stability of output power may change when you adjust the
output power. For example, the stability of output power at the maximum output power
is <5%, the stability may change to >5% when you adjust the output
power down.
Note: The laser head needs to be used on a heat sink with good heat dissipation.
|
|
*Note: For low noise version (Z=1), the power supply
of High
Power Laboratory Power Supply (Y=M) is not available.
|
Dimensions: (unit
mm)
Laser Head
197(L)×70(W)×50(H) mm3 , 2.0 kg

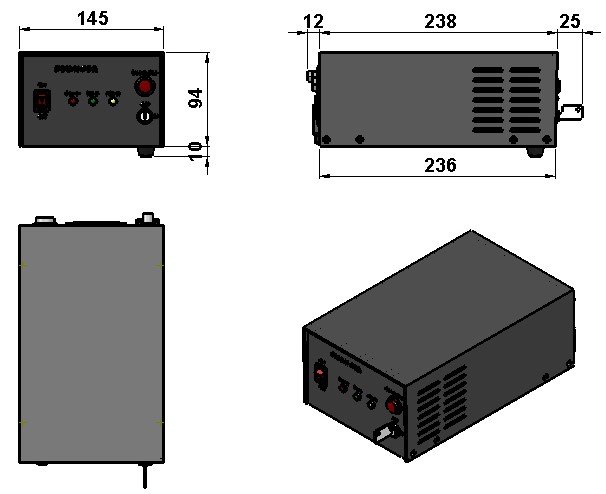

High Power Elite Power Supply
(Y=H)
236(L)
×145(W) ×104(H) mm3,
2.3
kg

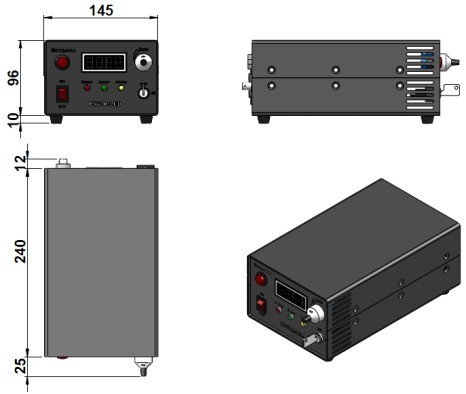

High
Power Laboratory Power Supply (Y=M)
277
(L) ×145(W) ×106 (H) mm3,
2.6 kg
Note: The above specifications are subject to change
without notice.
|
