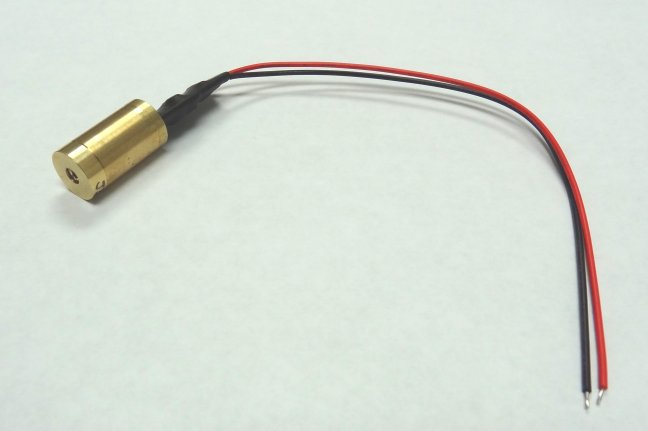

GMP450 Series 450nm Blue Dot Laser Diode Modules

GMP450-XF5

Overview

The Lasermate Group, Inc. GMP450 series is 450nm blue laser diode module with Automatic Power Control (APC) circuit design and compact dimensions of 12mm diameter.

Features

• 450nm blue laser diode module

• Automatic Power Control (APC) circuit design

• Compact size

• Power output stability 5%

Specifications

• Wavelength: 450nm+/-10nm
• Output Power (mW) @ 25^oC: 0.5-0.99mW, 3-4.99mW
• Laser Class: Class II, IIIa
• Operating Current: <300mA
• Operating Voltage: 3-5VDC
• Circuit Design: APC (Automatic Power Control)
• Operation Mode: CW
• Operating Temperature: -10 to 50^oC
• Dimensions: Dia. 12mm x L. 21.5 +/- 0.5mm (brass housing) + W. 11 x L. 23mm (driver circuit board)

Documentation

[PDF] GMP450-1F5 450nm <1mW Class II Blue Laser Diode Module Specifications

[PDF] GMP450-5F5 450nm <5mW Class IIIa Blue Laser Diode Module Specifications
