Laser Accessories / Laser and Optics Mounting Components / Mounting Post

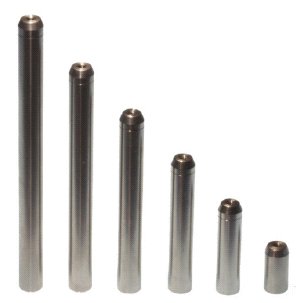

Mounting Post

Features

Compatible with Post Risers or Post Holders.
Upper end tapped with M6 (1/4-20) screw hole.
Lower end tapped with M4 (8-32) screw hole.
Unique marking is etched on English (Standard) models.
Post diameter is 12.7mm (1/2 inch) .
Length from 1" (25.4mm) to 6" (152.4mm)
Stainless Steel.

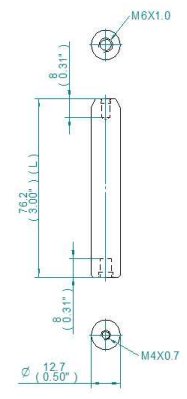

Post Metric

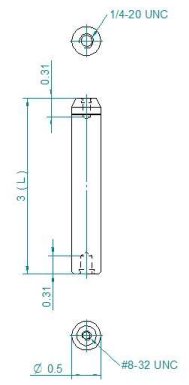

Post English

Note: The above specifications are subject to change without notice.

Ordering Information

Model No.	QTY	Unit price	Model No.	QTY	Unit price
PT-1-025-M-NU	1	$3.95	PT-1-010-E-NU	1	$3.95
	10	$3.45		10	$3.45
PT-1-050-M-NU	1	$4.95	PT-1-020-E-NU	1	$4.95
	10	$4.45		10	$4.45
PT-1-075-M-NU	1	$5.95	PT-1-030-E-NU	1	$5.95
	10	$5.45		10	$5.45
PT-1-100-M-NU	1	$6.95	PT-1-040-E-NU	1	$6.95
	10	$6.45		10	$6.45
PT-1-125-M-NU	1	$7.75	PT-1-050-E-NU	1	$7.75
	10	$7.25		10	$7.25
PT-1-159-M-NU	1	$7.95	PT-1-60-E-NU	1	$7.95
	10	$7.45		10	$7.45
