Lasermate Group, Inc. specializes in design and manufacturing high quality and low cost laser diode modules for OEM users. We have available blue, green, visible red and infrared laser modules with linear beam profiles in variety of packages and configurations offering at very competitive prices. Our laser modules are fully self-contained with laser diode, optics, and power supply. More than 150 types of OEM laser modules have been designed and manufactured for our customers. Designed for OEM, our laser modules are ideal for a wide range of low power laser applications, such as positioning, alignment, measurement, bar code reader and robotic control. From general sighting applications to OEM projects, we confidently meet your cost-performance requirements.

Image	Model Series	Data Sheet	Description	Wavelength	Line Angle	Output Power	Laser Class	Operating Current	Operating Voltage	Dimensions

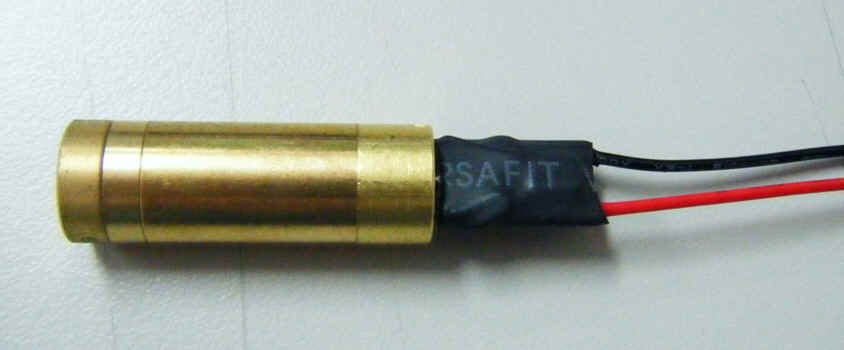

	GMP532-L45		532nm Green Line Generating DPSS Laser Modules with 45^o Line Optics	532nm	45^o	0.5-20mW	II, IIIa, IIIb	<0.30A	3V DC	Dia. 12mm x L. 51.5mm
	GMP532-L60		532nm Green Line DPSS Laser Modules with 60^o Line Optics	532nm	60^o	0.5-20mW	II, IIIa, IIIb	<0.30A	3V DC	Dia. 12mm x L. 51.5mm

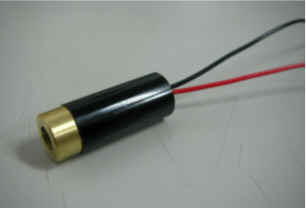

	GMP635-L100		635nm Red Line Laser Diode Modules with 100^o Line Optics	635nm	100^o	0.5-3mW	II, IIIa	40mA	3V DC	Dia. 12mm x L. 31.5mm
	PLP-L4		635nm-980nm Line Laser Diode Modules with 4-Degree Line Generating Lens	635-980nm	4^o	0.5-6mW	II, IIIa, IIIb	25-50mA	3-6V DC	Dia. 10.5mm x L. 20mm
	MVEB		405nm-642nm Line Laser Modules for Machine Vision Φ12mm, 5-12VDC	405-642nm	7^o, 10^o, 15^o, 30^o, 45^o, 50^o, 60^o, 75^o, 90^o	Up to 100mW	IIIb		5-12V DC	Dia. 12mm x 52mm
	MVEC		405nm-655nm Line Laser Modules for Machine Vision Φ18mm	405-655nm	7^o, 10^o, 15^o, 30^o, 45^o, 50^o, 60^o, 75^o, 90^o	Up to 100mW	IIIb		3V DC or 6V DC	Dia. 18mm x 60mm
	MVEE		405nm-808nm Line Laser Modules for Machine Vision Φ19mm, Modulation up to 10kHz	405-808nm	7^o, 10^o, 15^o, 30^o, 45^o, 50^o, 60^o, 75^o, 90^o	Up to 180mW	IIIb	300mA	5V DC	Dia. 19mm x L. 109mm
	MVEF		405nm-808nm Line Laser Modules for Machine Vision Φ20mm, IP67, Water and Dust Resistant, Modulation up to 100kHz	405-808nm	7^o, 10^o, 15^o, 30^o, 45^o, 50^o, 60^o, 75^o, 90^o	Up to 180mW	IIIb	300mA	5-30V DC	Dia. 22mm x L. 147mm
