RSLF-721- Series >100
mW SINGLE
LONGITUDINAL MODE
RED High Power 721nm
Diode Pumped Solid State Lasers
In
addition, the fiber coupled RSLF- series 721nm lasers with FC or SMA905
connector are also available. If interested, please send
the request to e-mail address paul@lasermate.com
for more detail information.
|
|
Model No.
|
RSLF-721-XFYA
|
RSLF-721-XFYE |
|
Wavelength
(nm)
|
721+/-1
|
|
Output
power (mW)
|
>30 (X=30),
>50 (X=50), >80 (X=80), >100 (X=100)
|
|
Transverse
mode
|
TEM00
|
|
Operating
mode
|
CW
|
|
Power
stability (rms, over 4 hours)
at the Maximum output power
|
<5% (Y=A), <3%
(Y=E)
|
|
Warm-up
time (minutes)
|
<10
|
|
M2
factor
|
<1.2
|
|
Beam
divergence, full angle (mrad)
|
<1.5
|
|
Beam
diameter at the aperture (mm)
|
~2.0
|
|
Spectral linewidth (nm)
|
<0.00001
|
|
Beam
height from base (mm)
|
27.4
|
|
Polarization
ratio
|
>100:1
|
|
Coherent length (m)
|
>50
|
|
Pointing stability after
warm-up (mrad)
|
<0.05
|
|
Operating
temperature (oC)
|
10-35
|
|
Expected
lifetime (hours)
|
10,000
|
|
Dimensions
of laser head (mm3)
|
197(L)×70(W) ×50(H)
|
|
Net
weight of laser head (kg)
|
2.0
|
|
Power Supply
|
High
Power Elite Power Supply (Y=H): with
complete FDA compliant features, such as the turnkey switch and interlock,
and easy to operate; CW mode
|
|
Power
Supply
Voltage
|
90-240 V AC
|
|
Dimensions
of power supply (mm3)
|
275 (L)
×145(W)
×104 (H) for
Y=H
|
|
Weight
of power supply
(kg)
|
2.3 for
Y=H
|
|
Warranty
time
|
10 months
|
|
Remark
|
The stability of output power is promised at the maximum output power
only. The stability of output power may change when you adjust the
output power. For example, the stability of output power at the maximum output power
is <5%, the stability may change to >5% when you adjust the output
power down.
|
|
|
Dimensions: (unit
mm)
Laser Head

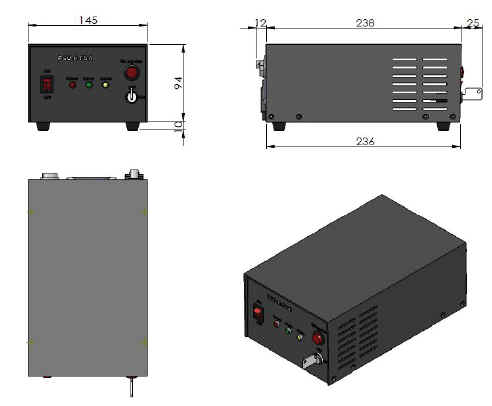

High Power Elite Power Supply
(Y=H)

Note: The above specifications are subject to change
without notice.
|
