RSLF- Series Single Longitudinal Mode 671nm Diode Pumped Solid State Red Laser

  Applications:

  • DNA sequencing

  •  Flow cytometry

  • Cell sorting

  • Instrument

  • Spectrum analysis

  • Interference

  • Measurement

  • Holography

  • Laser printing

  • Chip inspection

  • Physics experiments etc.

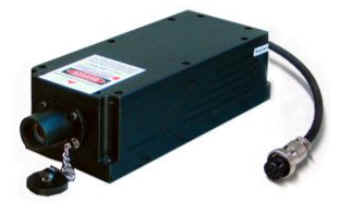

Laser Head

Elite Power Supply





Model No.

RSLF-671-XFHY

Wavelength (nm)

671+/-1

Output power (mW)

  >30  (X=30), >50  (X=50) >100  (X=100),

>200  (X=200), >300  (X=300), >400  (X=400), >500  (X=500)

Transverse mode

TEM00

Longitude mode

Single

Power stability (rms, over 4 hours)

<1% (Y=D), <3% (Y=E), <5% (Y=A)

Noise of amplitude (rms, 1-20MHz)

<0.5%

Warm-up time (minutes)

<10

Operating mode

CW mode

M2 factor

<1.2

Beam divergence, full angle (mrad)

<1.2

Beam diameter at the aperture (mm)

~2.0

Beam height from base (mm)

27.4

Coherent length (m)

>50

Spectral linewidth (nm)

<0.00001

Polarization ratio

>100:1

Point stability after warm-up (mrad)

<0.05

Operating temperature (oC)

10-35

Expected lifetime (hours)

10,000

Laser head dimensions (mm3)

197(L)×70(W) ×50(H)

Laser head weight (kg)

1.36

Power supply

High Power Elite Power supply with complete FDA compliant features, such as the turnkey switch and interlock, and easy to operate; CW mode without modulation.

Power supply input voltage

90-240VAC

Power supply dimensions (mm3)

236 (L) ×145(W) ×104 (H)

Power supply weight (kg)

2.3kg

Warranty

10 months

Dimensions of Laser Head & Power Supply (unit: mm)

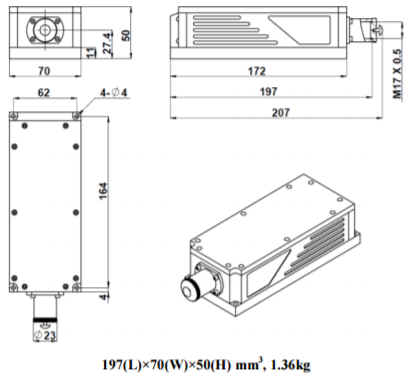

Laser Head

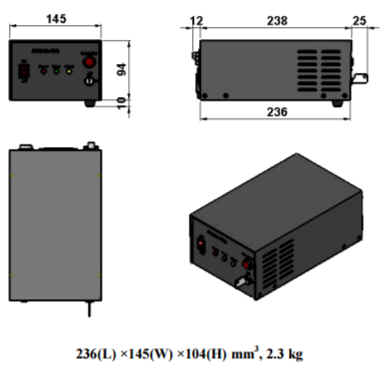

Elite Power Supply with turn key switch for 90-240VAC

   The above specifications are subject to change without notice.
