RMLW- Series >5W
High Power 671nm
Diode
Pumped Solid State Lasers
|
|
|
|
|
Laser Head
|
Higher Power Elite Power Supply
|
Higher Power
Laboratory
Power Supply
|
In
addition, the fiber coupled RMLW- series 671nm lasers with FC or SMA905
connector are also available. If interested, please send
the request to e-mail address paul@lasermate.com
for more detailed information.
Fiber
coupled laser
|
Model No.
|
RMLW-671-XFYDZQ
|
RMLW-671-XFYEZQ
|
RMLW-671-XFYAZQ |
|
Wavelength
(nm)
|
671+/-1
|
|
Output
power (W)
|
>4 (X=4W),
>5 (X=5W)
|
|
Transverse
mode
|
Near TEM00
|
|
Operating
mode
|
CW
|
|
Power
stability (rms, over 4 hours)
at the Maximum output power
|
<1%
|
<3%
|
<5%
|
|
Noise of
amplitude (rms, 1~20MHz)
|
<1% (Z=1) as the low noise version; >1% (Z=2)
|
|
Warm-up
time (minutes)
|
<10
|
|
M2
factor
|
3.0 ~ 6.0
|
|
Beam
divergence, full angle (mrad)
|
<2.0
|
|
Beam
diameter at the aperture (mm)
|
~4.0
|
|
Beam
height from base (mm)
|
93.5
|
|
Polarization ratio
|
>100:1
|
|
Operating
temperature (oC)
|
10-35
|
|
Expected
lifetime (hours)
|
10,000
|
|
Dimensions
of laser head (mm3)
|
333(L)×140(W)
×125(H)
|
|
Net
weight of laser head (kg)
|
6.1
|
|
Power Supply
|
Higher
Power Elite Power Supply (Y=J): with
complete FDA compliant features, such as the turnkey switch and interlock,
and easy to operate; CW mode with optional TTL modulation up to 10kHz
Higher
Power Laboratory Power Supply (Y=N): with
complete FDA
compliant features, such as the turnkey switch and interlock, and
more functions; CW mode with the
adjustable output power knob, the operating current LED display, and
optional TTL/Analog modulations up to 10kHz
|
|
Optional Modulation
|
No (Q=0),
1Hz -1kHz TTL (Q=1), 1kHz -10kHz TTL
(Q=2)
1Hz -1kHz
analog (Q=3), 1kHz -10kHz analog
(Q=4)
|
|
Power
Supply
Voltage
|
90-240 V AC
|
|
Dimensions
of power supply (mm3)
|
307
(L) ×168(W) ×123(H) for Y=J; 300 (L) ×162(W) ×134(H) for Y=N
|
|
Weight
of power supply
(kg)
|
5.1 for Y=J; 5.2 for Y=N
|
|
Warranty
time
|
10 months
|
|
Remark
|
1. For low noise version, only Higher
Power Elite Power Supply is available.
2. The stability of output power is promised at the maximum output power
only. The stability of output power may change when you adjust the
output power. For example, the stability of output power at the maximum output power
is <5%, the stability may change to >5% when you adjust the output
power down.
|
|
|
Dimensions: (unit
mm)

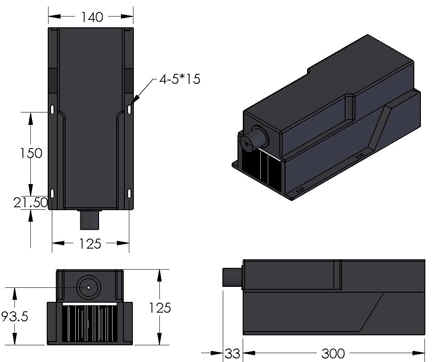

Laser Head

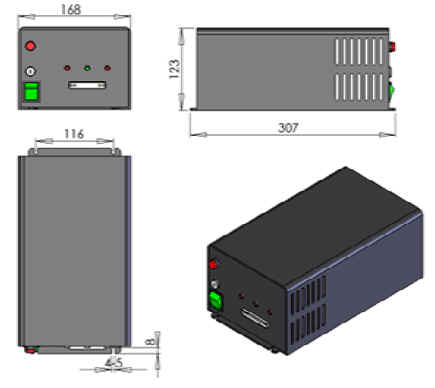

Higher Power Elite Power Supply
(Y=H)
Higher
Power Laboratory Power Supply (Y=M)
Note: The above specifications are subject to change
without notice.
|
