DIODE PUMPED SOLID-STATE
RML SERIES 660nm RED
LASER
|
|
|
|
|
Laser Head
|
Elite Power Supply
|
Laboratory
Power Supply
|
Diode
pumped solid state 660nm red laser is widely used in the application of collimation,
laser medical treatment, scientific experimentation, optics instrument, laser
display, and laser light show, etc. Our
RML-series green
lasers consist of the laser head and the AC power supply with complete FDA
compliant features. They are easy to operate (Elite Power Supply)
and can have many functions (Laboratory Power
Supply), such
as the adjustable output power knob, the operating current LED display, and
optional TTL/Analog modulations up to 10kHz. The features of
RML-series red laser are compact, long lifetime, and low cost.
In
addition, the fiber coupled RML-series 660nm red lasers with FC or SMA905
connector are also available. If interested, please send
the request to e-mail address paul@lasermate.com
for more detailed information.
|
Model No.
|
RML-660-XFYBQ
|
RML-660-XFYAQ |
|
Wavelength
(nm)
|
660+/-1
|
|
Output
power (mW)
|
>30 (X=30),
>50 (X=50),
>80 (X=80),
>100 (X=100)
|
|
Transverse
mode
|
Near TEM00
|
|
Operating
mode
|
CW
|
|
Power
stability (rms, over 4 hours)
at the Maximum output power
|
<10%
|
<5%
|
|
Warm-up
time (minutes)
|
<10
|
|
M2
factor
|
<1.2
|
|
Beam
divergence, full angle (mrad)
|
<1.5
|
|
Beam
diameter at the aperture (mm)
|
~2.0
|
|
Beam
height from base (mm)
|
24.8
|
|
Polarization
ratio
|
>100:1 (0 or 90 degree)
|
|
Pointing stability after
warm-up (mrad)
|
<0.05
|
|
Operating
temperature (oC)
|
10-35
|
|
Expected
lifetime (hours)
|
10,000
|
|
Dimensions
of laser head (mm3)
|
140.8(L)×73(W) ×46.2(H)
|
|
Net
weight of laser head (kg)
|
0.6
|
|
Power Supply
|
Elite
Power supply (Y=E): with
complete FDA compliant features, such as the turnkey switch and interlock,
and easy to operate; CW mode with optional TTL modulation up to 10kHz
Laboratory
Power supply (Y=L): with complete FDA
compliant features, such as the turnkey switch and interlock, and
more functions; CW mode with the
adjustable output power knob, the operating current LED display, and
optional TTL/Analog modulations up to 10kHz
|
|
Optional Modulation
|
No (Q=0),
1Hz -1kHz TTL (Q=1), 1kHz -10kHz TTL
(Q=2)
1Hz -1kHz
analog (Q=3), 1kHz -10kHz analog (Q=4)
|
|
Power
Supply
Voltage
|
90-240 V AC
|
|
Dimensions
of power supply (mm3)
|
133(L) ×130(W) ×65(H) for Y=E; 154
(L) ×155(W) ×95 (H) for Y=L
|
|
Weight
of power supply
(kg)
|
1.2 for Y=E; 1.5 for
Y=L
|
|
Warranty
time
|
10 months
|
|
Remark
|
The stability of output power is promised at the maximum output power
only. The stability of output power may change when you adjust the
output power. For example, the stability of output power at the maximum output power
is <5%, the stability may change to >5% when you adjust the output
power down.
|
|
Dimensions
of Laser Head & Power Supply (unit:
mm)

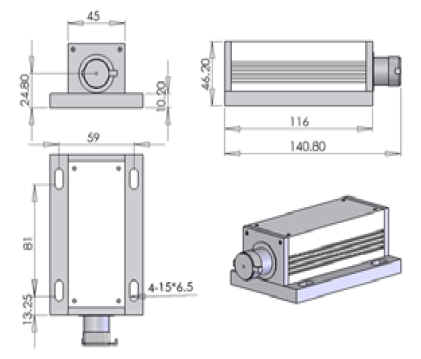

Laser Head

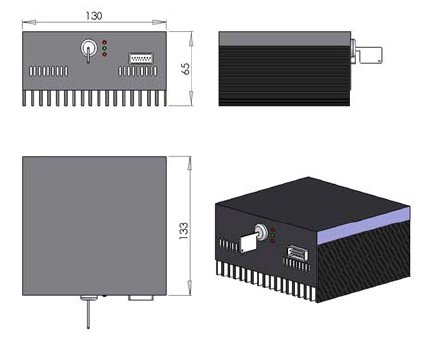

Elite Power Supply with turn key switch for 90-240VAC

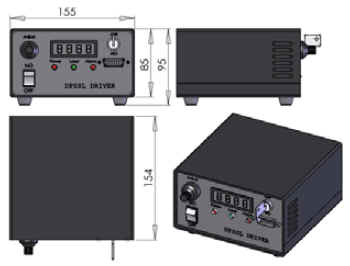

Laboratory
Power Supply with turn key switch for 90-240VAC
|
The above specifications are
subject to change
without notice.
|
