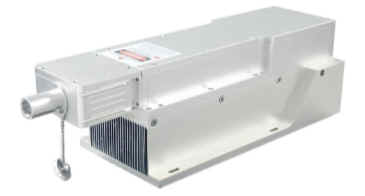

Actively Q-switched AOM (Acousto-Optic Modulation) 266nm lasers

The 266 nm solid state actively Q-switched AOM (Acousto-Optic Modulation) lasers have the features of TEC cooling system, high peak power, high repetition rate, and short pulse duration, and are widely used in laser marking, carving, measurement, research and so on.

  Note:

1. Specifications of Actively Q-switched AOM (Acousto-Optic Modulation) laser are based on the laser pulsed at the specified repetition rate, such as 10KHz. If the laser is run at a different repetition rate, the output characteristics may change.

2. Specifications are subject to change without notice.

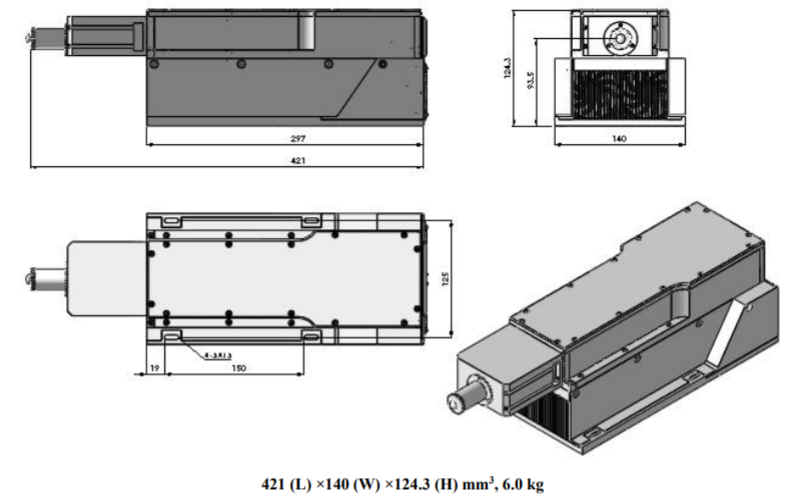

Laser Head

Dimensions: (unit mm)

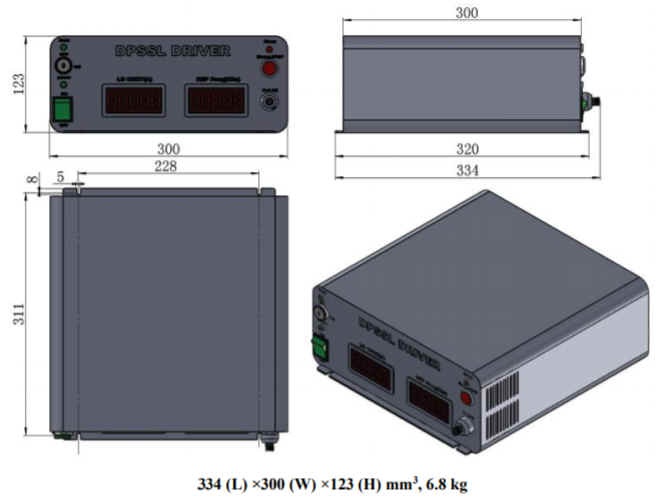

Power Supply

Dimensions: (unit mm)
