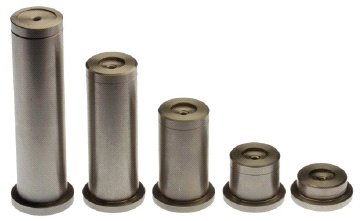

Post Riser

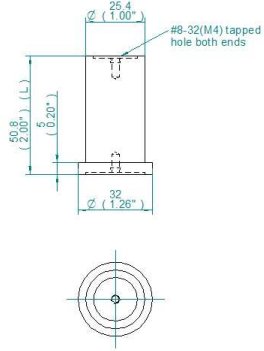

Features

Compatible with Posts or Post Holders.
Upper end diameter 25.4mm( 1.0 in. )
Lower end diameter 32mm( 1.26 in. ).
Unique marking etched on English (Standard) models.
Both ends tapped with M4(8-32) screw holes.
Mountable on Breadboards or Rail Career.
M4 to M6 (8-32 to 1/4-20) Thread Adaptor available as an option for M6 standard products.
Length from 1" (25.4mm) to 4" (101.6mm)
Stainless Steel.

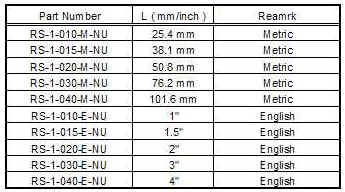

Ordering Information

Model No.	QTY	Unit price	Model No.	QTY	Unit price
RS-1-010-M-NU	1	$11.75	RS-1-010-E-NU	1	$11.75
	10	$11.25		10	$11.25
RS-1-015-M-NU	1	$12.75	RS-1-015-E-NU	1	$12.75
	10	$12.25		10	$12.25
RS-1-020-M-NU	1	$13.75	RS-1-020-E-NU	1	$13.75
	10	$13.25		10	$13.25
RS-1-030-M-NU	1	$15.75	RS-1-030-E-NU	1	$15.75
	10	$15.25		10	$15.25
RS-1-040-M-NU	1	$17.75	RS-1-040-E-NU	1	$17.75
	10	$17.25		10	$17.25

Note: The above specifications are subject to change without notice.
