Laser Accessories / Laser and Optics Mounting Components / Post Holder

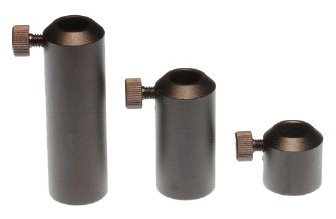

Post Holder

Features

Compatible with Posts, Clamping Fork or Sliding Base.
Post Holder Inner Diameter Industry Standard 12.7mm (1/2 Inch)
Exterior Diameter 25.4mm (1 inch).
Slotted track along inner surface for extra stability.
Spring-cushioned steel ball bearing holds Post in position by friction.
Unique marking etched on English (Standard) models.
Mountable with standard M4 ( 8-32 ) screws.
Length from 1" (25.4mm) to 4" (101.6mm)
Aluminum

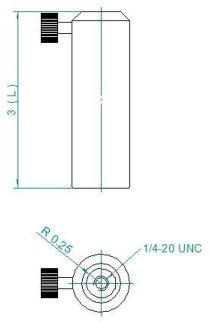

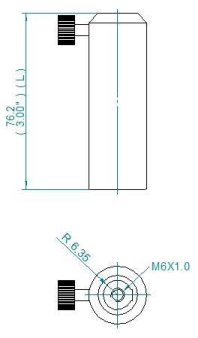

Post Holder Metric Ordering Information			Post Holder English
Model No.	QTY	Unit price	Model No.	QTY	Unit price
PH-1-012-M-BK	1	$9.00	PH-1-005-E-BK	1	$9.00
	10	$8.50		10	$8.50
PH-1-025-M-BK	1	$9.00	PH-1-010-E-BK	1	$9.00
	10	$8.50		10	$8.50
PH-1-050-M-BK	1	$10.00	PH-1-020-E-BK	1	$10.00
	10	$9.50		10	$9.50
PH-1-076-M-BK	1	$12.00	PH-1-030-E-BK	1	$12.00
	10	$11.50		10	$11.50
PH-1-101-M-BK	1	$14.00	PH-1-040-E-BK	1	$14.00
	10	$13.50		10	$13.50
