Laser Diode Modules with Shutter: 375nm to 940nm

With Shutter for Safety, Built-In TEC Cooler and ACC Circuit Design

Our high stability DLXS-series diode lasers are constructed with features of integrated electronics, plug and play, good beam profile, shutter for protection, built-in TEC cooler, ACC (Automatic Current Control) circuit design, miniaturization, international standardization of interface advantages of continuous diode lasers and optional TTL or Analog modulation. They are the ideal solution for a wide range of applications, including life sciences, environmental monitoring, inspection and machine vision. Housed in compact packages, these lasers are the perfect choice for design in and integration into OEM instrumentation and systems, as well as for end user applications in research and development.

Lasermate Group, Inc. offers shuttered laser diode modules at the following wavelengths: 375nm, 405nm, 450nm, 520nm, 637nm, 642nm, 655nm, 660nm, 785nm, 808nm, 915nm, 940nm and with output power reaching up to 200mW.

Please see below for general details for each available wavelength of our High Stability Integrated Electronics DLXS-series diode lasers. For more detailed information and specification sheet available for download on each item number, please click on the Model No. link.

***Note: The DLXS-series lasers are designated solely as OEM components for incorporation into the customer's end products. Therefore it is the customer's responsibility to comply with FDA requirements of FDA 21CFR, section 1040.10 and 1040.11 as complete laser product.

Wavelength (nm)

Model No.

Output power (mW)

Power stability (rms, over 4 hours) Optional Modulation

375

DLXS-375-PFIDQ >30 (P=30), >50 (P=50)

<1%

TTL: Up to 1MHz;
Analog: Up to 100kHz

405

DLXS-405-PFIDQ

>50 (P=50), >100 (P=100), >200 (P=200)

<1% TTL: Up to 1MHz;
Analog: Up to 100kHz

450

DLXS-450-PFIDQ

>30 (P=30)

<1% TTL: Up to 1MHz;
Analog: Up to 100kHz

520

DLXS-520-PFIDQ

>20 (P=20), >50 (P=50)

<1% TTL: Up to 1MHz;
Analog: Up to 100kHz

637

DLXS-637-PFIDQ >50 (P=50), >100 (P=100) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz

642

DLXS-642-PFIDQ >50 (P=50), >100 (P=100) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz
655 DLXS-655-PFIDQ >50 (P=50), >80 (P=80) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz
660 DLXS-660-PFIDQ >50 (P=50), >80 (P=80) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz
785 DLXS-785-PFIDQ >50 (P=50) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz
808 DLXS-808-PFIDQ >50 (P=50) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz
915 DLXS-915-PFIDQ >50 (P=50), >100 (P=100) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz
940 DLXS-940-PFIDQ >50 (P=50), >100 (P=100) <1% TTL: Up to 1MHz;
Analog: Up to 100kHz


Notes:
  1.       The stability of output power may change when you adjust the output power.
  2.       The laser head needs to be used on a heat sink with good heat dissipation.
  3.       Optional AC adaptor with input voltage of 100-240VAC (Model No. AC12DC) is available upon request.

Dimensions of Laser Module and Power Supply (mm)

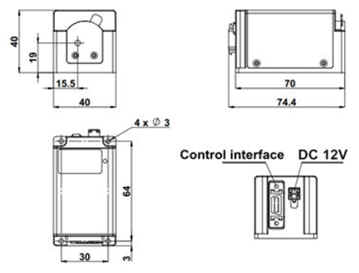

 Laser Module

Dimensions: 74.4(L) x40(W) x40(H) mm3
Weight: 0.2 kg

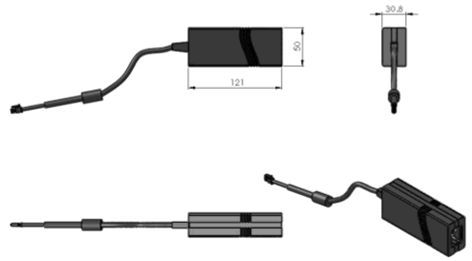

Optional AC Adaptor (Model No. AC12DC)

Dimension: 121(L) x50(W) x30.8(H) mm3
Weight: 0.3 kg

Note: The above specifications are subject to change without notice.
